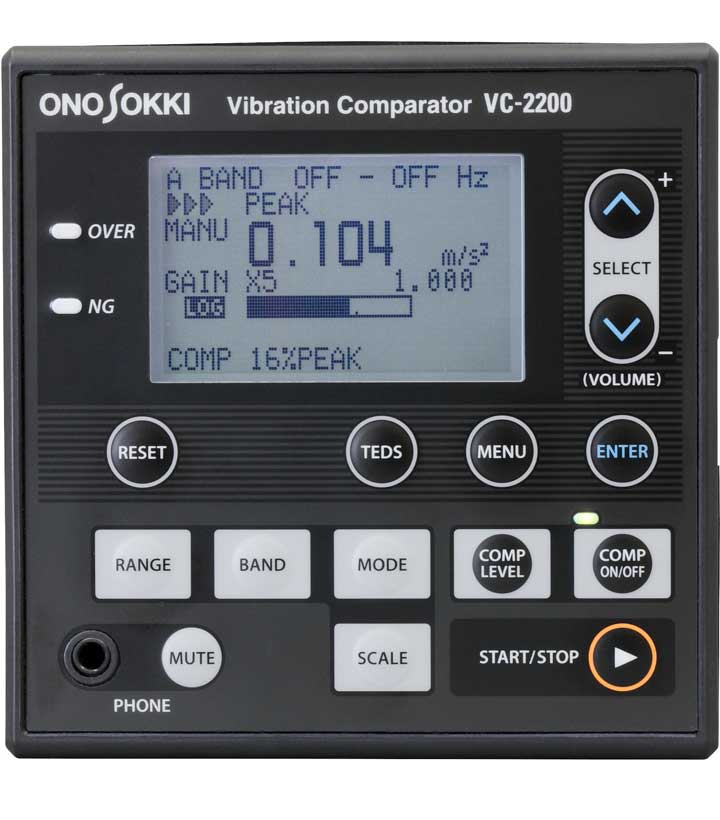

VC-2200

Vibration Comparator

VC-2200
VC-2200
VC-2200

Our line of vibration comparators can serve as your vibration "watchdog" in a wide range of situations in which vibration based judgments must be made, such as in go/nogo vibration testing of products, facilities diagnosis and machine tool cutting tool damage.

  • Simultaneous two-band measurement.
  • Digital display function.
  • Analog output.
  • Headphone output.
  • Comparator gate.
  • Comparator time delay setting.
  • Compact 96 x 96 (DIN) size.

SEND Inquiry

Specifications

Number of Input Channels 1
Input Range 0.1 to 50000 m/s2
Number of Settable Bands 2
Measurement Modes Rms, Peak, Maximum hold, Peak hold
Output Modes Analog output, Headphone output, Cal signal output, RS-232C output, Over output
Comparator Function Judgements made independantly for each band
Operation Temperature 0 to 50ยบ C
Dimensions 96 mm x 96 mm x 112 mm (DIN)
Weight Aproximately 500 g

Notes

Standard Accessories: Panel Mounting Fixtures (2), Instruction Manual, Quick Reference Manual.
